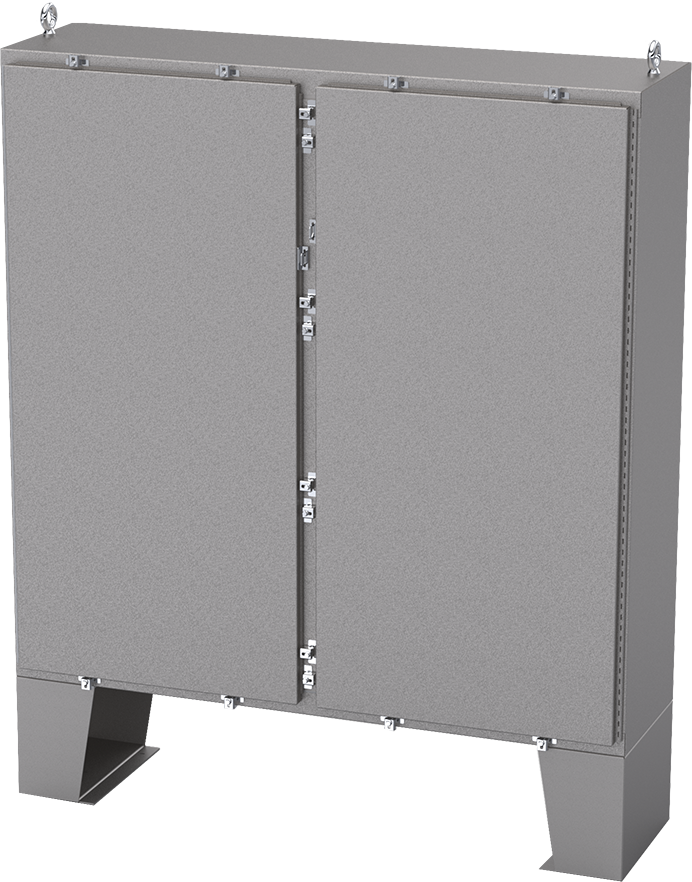

Floor Mount Enclosures
Two Door Type 4/4X


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 12 gauge steel, 304 or 316 stainless steel
  • Seams continuously welded and ground smooth
  • Hybrid sealing flange around all sides of door face
  • Oil resistant gasket
  • Gasket retainer on steel enclosures
  • Continuous hinge with stainless steel pin
    (Stainless Steel Hinge on all SS models)
  • Stainless steel door clamps
  • Pad lockable hasp and staple
  • 12” Legs with pre-cut mounting holes
  • 3/8-16 collar studs and panel supports for mounting panels
  • Grounding stud on door
  • ¾” Heavy duty lifting eyes
  • Removable center post
  • Stiffeners added for additional strength

Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 4/4X
  • IEC 60529
  • IP66

Finish

  • Brushed & blended finish for stainless steel and aluminum enclosures
  • ANSI 61 gray powder coating inside and out for carbon steel enclosures
  • Ask about custom powder coating options!

Optional Accessories

  • Subpanels
  • Alternative Leg Height
  • Window Kits
  • Louvers
  • Insulation

Drawings
