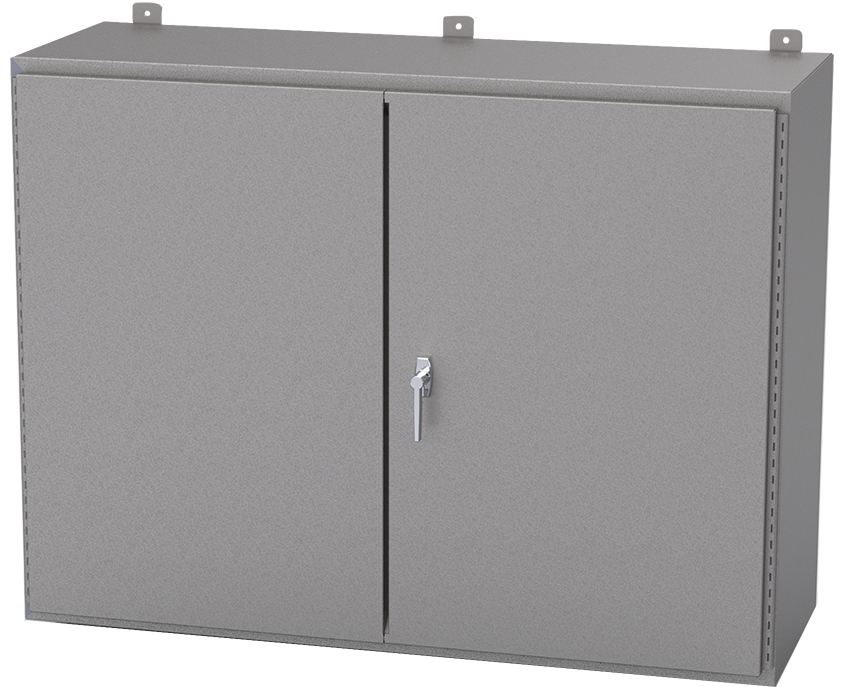

Wall Mount Enclosures
Two Door Type 12


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 14 gauge steel or 304 stainless steel
  • Seams continuously welded and ground smooth
  • Hybrid sealing flange around all sides of door face
  • Oil resistant gasket
  • Gasket retainer on steel enclosures
  • Continuous hinge with stainless steel pin
    (Stainless Steel Hinge on all SS models)
  • Three-point key locking handle
  • Mounting feet on top and bottom
  • 3/8-16 collar studs for mounting panels
  • Grounding stud on door
  • Larger enclosures use 12/10 gauge steel and stiffeners on back
  • Overlapping doors with right door as master

Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 12
  • IEC 60529
  • IP52

Finish

  • Number 4 Brushed and Blended Finish for all Stainless Steel Enclosures
  • ANSI 61 Gray Powder Coating Outside, White Powder Coating inside for all Steel Enclosures
  • Ask about Custom Powder Coating Color Options!

Optional Accessories

  • Subpanels
  • Window Kits
  • Louvers
  • Alternate Handles
  • Keyed Locking Quarter Turn
