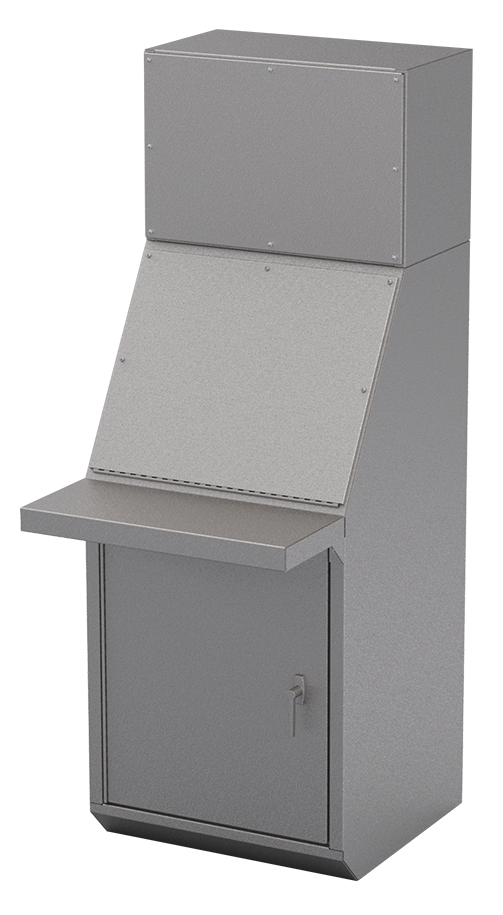

EC Modular Console – NEMA 4/12


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 14 gauge steel, 304 or 316 stainless steel, or 0.08 5052 aluminum
  • Seams continuously welded and ground smooth
  • Oil resistant gasketed doors
  • Continuous hinge with stainless steel pin (Stainless Steel Hinge on SS models)
  • Three-point keyed locking latches on lower doors
  • Captivated screws hold control panel secure in closed position
  • Cable stop holds control panel door open at 90 degrees
  • Unistrut rails for mounting panels or rack angles
  • Grounding studs on lower door
  • Desks and tops can be ordered separately or assembled as complete unit
  • One and two door configurations available

Industry Standards

  • UL Listed
  • UL/cUL NEMA Type 4 or 12
  • IEC 60529
  • IP66 or 52

Finish

  • Brushed & blended finish for stainless steel and aluminum enclosures
  • ANSI 61 gray powder coating inside and out for carbon steel enclosures
  • Ask about Custom Powder Coat Color Options!

Optional Accessories

  • Caster Kits
  • Louvers or Cutouts
  • Sub Panels
  • Print Pockets
  • Alternate Handles
