Disconnect Enclosures

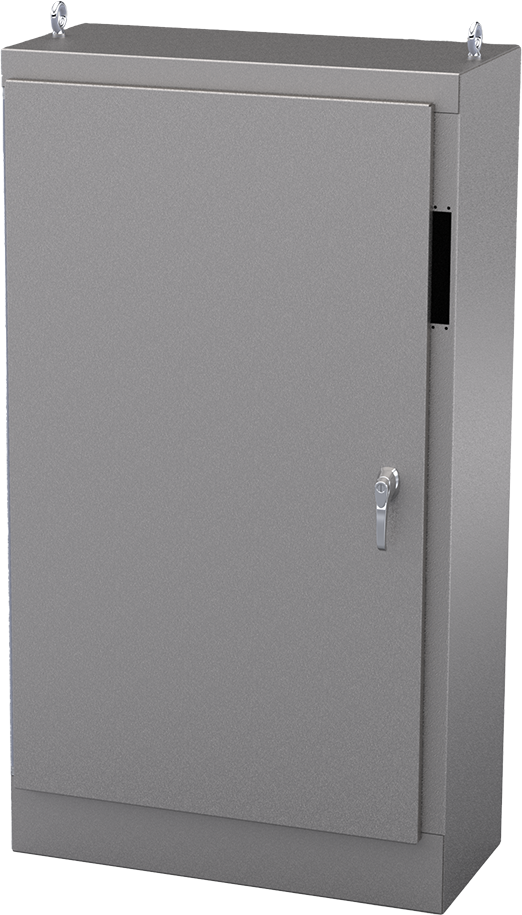

One Door Free Standing Disconnect Type 12


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 10 gauge steel or 304 stainless steel
  • Seams continuously welded and ground smooth
  • Hybrid sealing flange around all sides of door
  • Oil resistant gasket
  • Gasket retainer on steel enclosures
  • Continuous hinge with stainless steel pin
    (Stainless Steel Hinge on SS models)
  • Heavy-duty three point locking handle
  • Pre-cut holes for floor mounting
  • 3/8-16 Collar studs and panel supports for
    mounting panels – panel included
  • Grounding stud on door
  • ¾” Heavy duty lifting eyes
  • Stiffeners added for rigidity
  • Removable center post
  • Pivot posts and interlock bracket welded to door
  • Precut holes for disconnect operating mechanism

Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 12
  • IEC 60529
  • IP52

Finish

  • Brushed & blended finish for stainless steel and aluminum enclosures
  • ANSI 61 gray powder coat outside, white powder coat inside for carbon steel enclosures

Optional Accessories

  • Alternate handles
  • Window kits
  • Subpanels
  • Louvers
