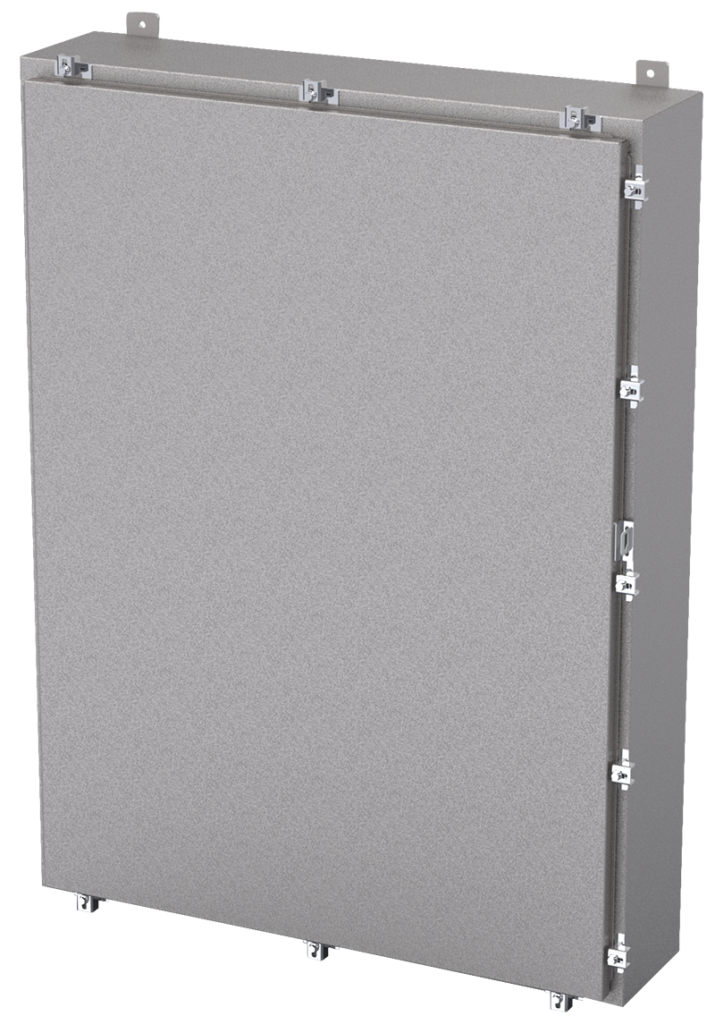

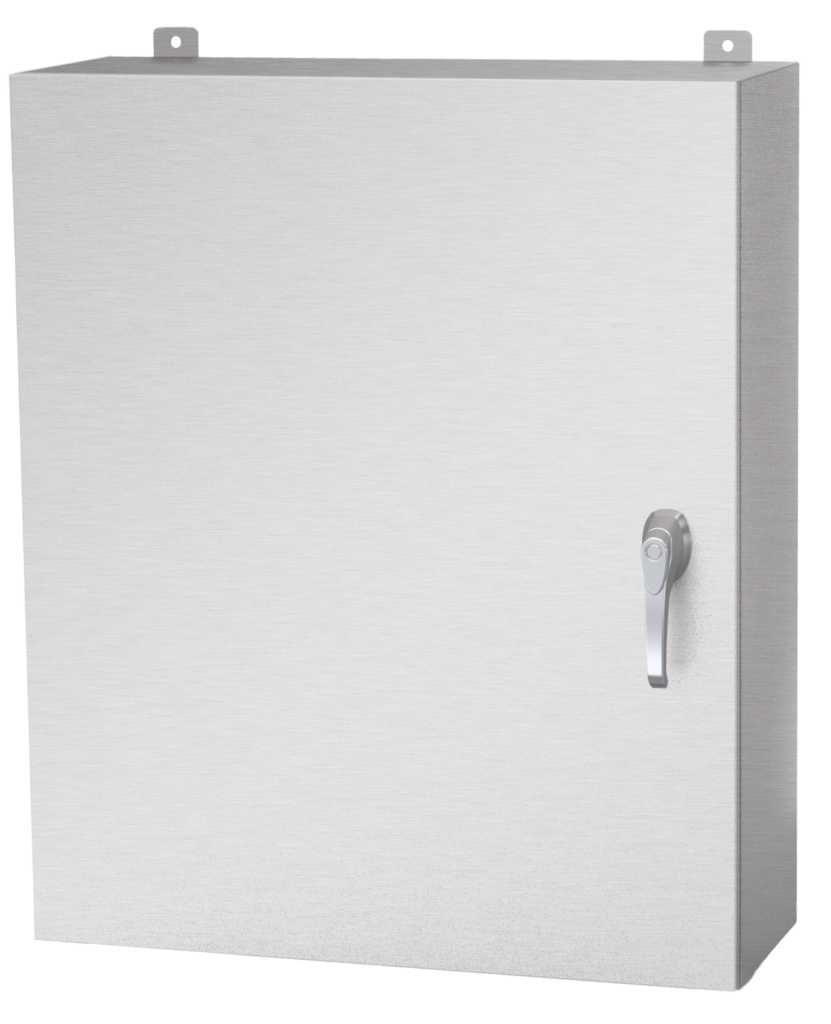

Wall Mount Enclosures
One Door Type 4/4X


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 14 or 16 gauge steel or 304 stainless steel
  • Seams continuously welded and ground smooth
  • Return flange around all sides of door opening
  • Oil resistant gasket
  • Gasket retainer on steel enclosures
  • Continuous hinge with stainless steel pin (Stainless Steel Hinge on SS models)
  • Stainless steel door clamps
  • Mounting feet on top and bottom
  • 3/8-16 collar studs for mounting panels
  • Ground stud on door
  • Stiffeners added to enclosure sizes over 30”

Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 4/4X
  • IEC 60529
  • IP66

Finish

  • Brushed & blended finish for stainless steel and aluminum enclosures
  • ANSI 61 gray powder coating inside and out for carbon steel enclosures

Optional Accessories

  • Subpanels
  • Floor stand kit
  • Window Kits
  • Louvers
  • Insulation

Drawings
