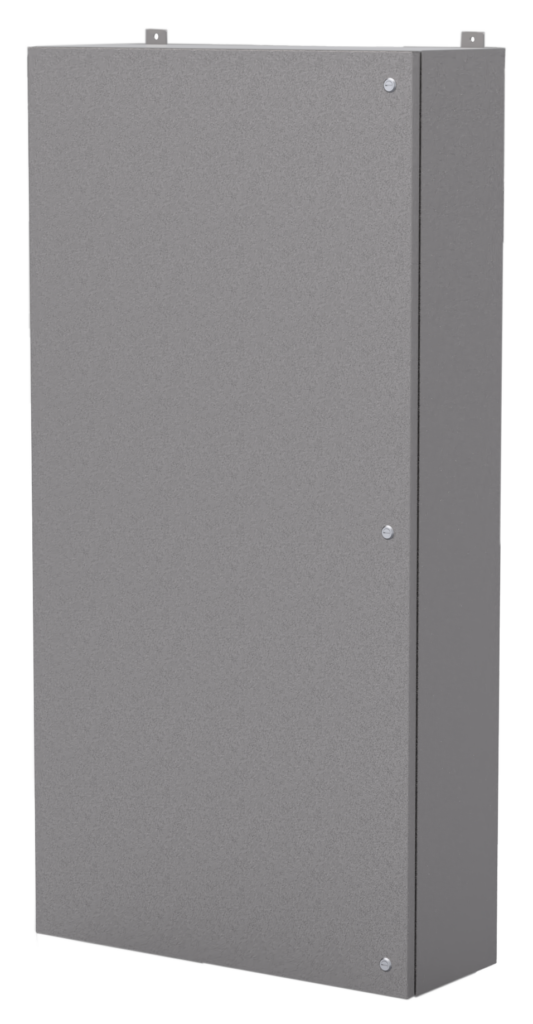

Wall Mount Enclosures
New Generation Type 12/12x


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 14 or 16 gauge steel or 304 stainless steel
  • Seams continuously welded and ground smooth
  •  Hybrid sealing flange around all sides of door face
  • Oil resistant gasket
  • Gasket retainer on steel enclosures
  • Door mounted flush with body
  • Stainless steel removable pin hinges
  • Mounting feet on top and bottom
  • Slotted quarter turn latch
  • 3/8-16 collar studs for mounting panels
  • Grounding stud on door
  • Stiffeners added to enclosure sizes over 30”

Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 12
  • IEC 60529
  • IP52

Finish

  • Brushed and Blended Finish for Stainless Steel and Aluminum Enclosures
  • ANSI 61 Gray Powder Coating Outside, White Powder Coating Inside for Steel Enclosures
  • Ask about Custom Powder Coating Color Options!

Optional Accessories

  • Subpanels
  • Keyed Quarter Turn
  • Alternate Latches
  • Window Kits
  • Louvers
