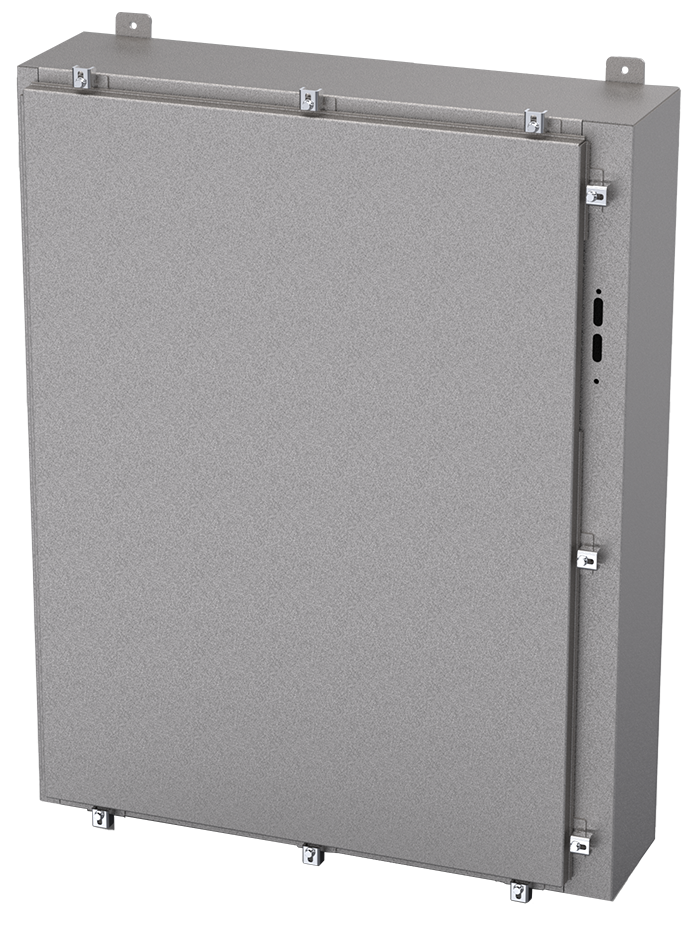

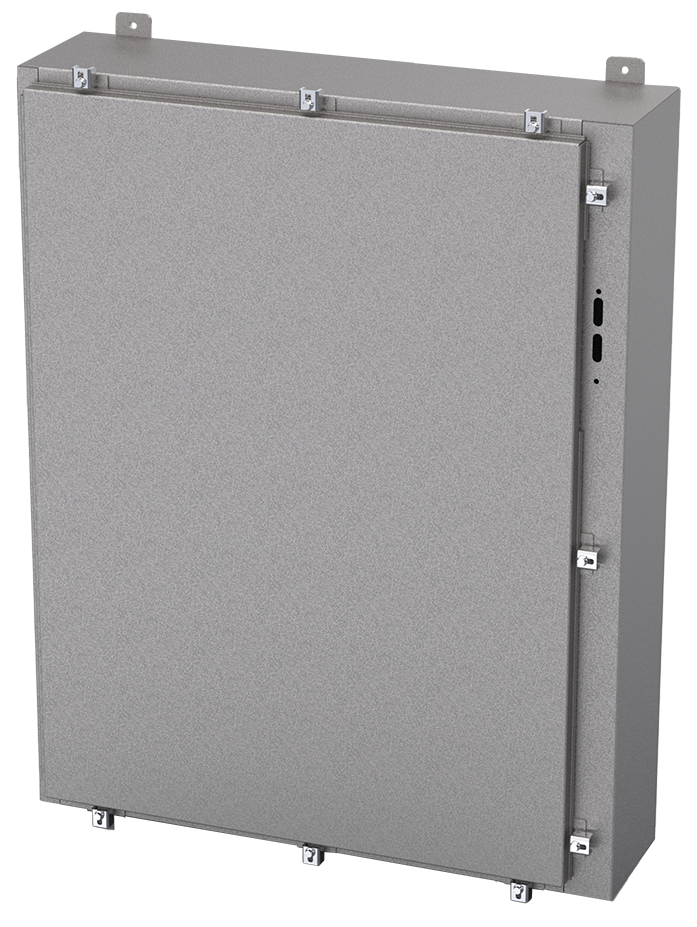

Disconnect Enclosures
One Door Wall Mount Type 4/4X


READY TO ORDER?

EMF offers a wide range of
customization options on all standard enclosures

GET A CUSTOM QUOTE

Customization Information

Product Specifications

  • 14 gauge steel, 304 or 316 stainless steel
  • Seams continuously welded and ground smooth
  • Hybrid sealing flange around all sides of door
  • Oil resistant gasket
  • Gasket retainer on steel enclosures
  • Continuous hinge with stainless steel pin
  • (Stainless Steel hinge on SS models)
  • Stainless steel door clamps
  • Mounting feet on top and bottom
  • Collar studs for mounting panels
  • Grounding stud on door
  • Pivot posts and interlock bracket welded to door
  • Precut holes for Disconnect Operating Mechanism

Industry Standards

  • UL and CSA Listed
  • UL/cUL NEMA Type 4/4x
  • IEC 60529
  • IP66

Finish

  • Brushed & blended finish for stainless steel and aluminum enclosures
  • ANSI 61 gray powder coat outside, white powder coat inside for carbon steel enclosures

Optional Accessories

  • Keyed locking quarter turn latch
  • Window kits
  • Subpanels
  • Alternative door clamps
  • Louvers
